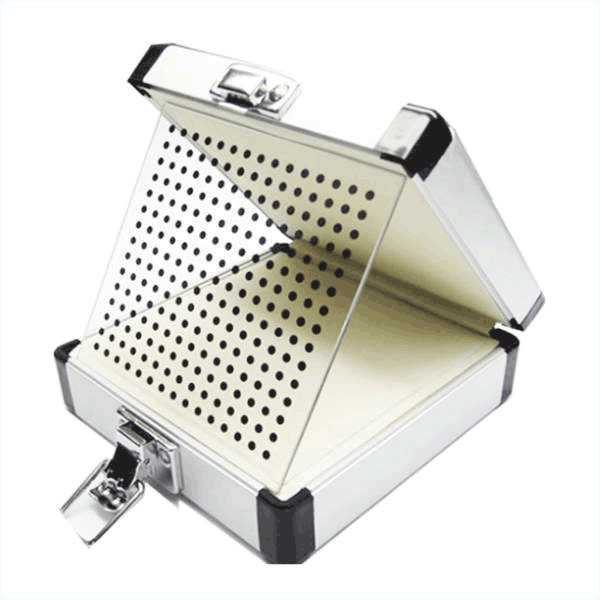

Name: Highly accuracy calibration targets glass slide metal calibration plate ceramic calibration board
Brand: Optry
SKU: 00077
Rating: 4.1 (89 reviews)

Highly accuracy calibration targets glass slide metal calibration plate ceramic calibration board

Optry Optics can customize various calibration plates and correction films.

Calibration board material:

Material 1: Soda glass: The color of the calibration plate used in Russia is silver, the color of the calibration plate in Germany and Austria and neighboring countries is blue; the color of the calibration plate in the United States and Japan is yellow. This color is determined by the coating process, and the quality of the calibration board cannot be judged by the color alone. The high-end color of the domestic calibration board is yellow, and the cost of other colors is relatively low. Standard manufacturing process: The glass substrate must be polished, cleaned, and coated. The film is firm and there are few defects in the post-production process. If one of the processes is reduced or the machine is not very good, the cost of the finished product will be much cheaper, and the quality must not be very good. Example: If it is made according to the normal process and the size is 63mm*63mm, the price for mass production is at least more than 100 yuan.

Material 2: The ceramic base standard board has the characteristics of low thermal expansion coefficient, high strength, high hardness, good wear resistance, low thermal conductivity, good acid and alkali resistance, etc., and its good surface diffuse reflection treatment solves the problem in the application process In the case of the front light source, the problem of reflection of the glass calibration plate can better identify the detailed information of the calibration plate pattern to achieve higher calibration accuracy and measurement accuracy.

Material 3: Quartz material, the material has good light transmittance, the biggest advantage: the coefficient of expansion is small. In the process of calibrating the instrument, it is not affected by the ambient temperature. The corresponding cost is also high. Quartz materials are divided into JGS1 and JGS2. JGS1 is expensive. JGS2 is relatively cheap and has bubbles inside.

Material 4: Matte metal aluminum calibration board: The biggest advantage of this calibration board is that it is anti-falling, durable, opaque and non-reflective. Its good surface diffuse reflection treatment solves the problem of reflection of the glass calibration plate in the case of the front light source during the application process, and better recognizes the details of the calibration pattern to achieve higher calibration and measurement accuracy.

Material 5: Photo paper material: Advantages: light and thin, non-reflective, low cost, easy to make. The disadvantage is that it is not waterproof or oil-proof.

Material 6: Film Material: Film is also a film, which generally consists of five parts: protective film, photosensitive emulsion, adhesive layer, film base, and anti-halation layer. When light is irradiated on the silver halide, the silver halide turns into black silver, which is fixed on the film base after the development process and becomes a common black and white negative film. Color negative films are coated with three layers of silver halide to express the three primary colors.
