Name: Custom High Accuracy Machine Vision Applications Calibration Target halcon chess board glass calibration plate
Brand: Optry
SKU: 00020
Rating: 4.1 (60 reviews)

Customizable High Accuracy Machine Vision Applications Calibration Target halcon chess board glass calibration plate

Calibration target

Application field

Optrytech optical glass series calibration boards and ceramic series calibration boards are commonly used calibration tools for customer groups such as university experiments, research unit project development and machine vision integrator product calibration, and can easily obtain camera calibration data.

Function of calibration board:

In order to correct lens distortion, determine the conversion relationship between physical dimensions and pixels, and determine the relationship between the three-dimensional geometric position of a point on the surface of a space object and its corresponding point in the image, a geometric model of camera imaging needs to be established. It is a high-precision calibration tool dedicated to research units and the field of vision, including three-dimensional image measurement, three-dimensional reverse engineering, three-dimensional matching, three-dimensional reconstruction, etc. The data of camera calibration results are mainly obtained through calibration software.

What is the calibration plate?

Calibration Target corrects lens distortion for vision machine in machine vision, image measurement, photogrammetry, 3d reconstruction, etc.Determine the conversion between physical size and pixels;And to determine the relationship between the 3d geometric position of a point on the surface of a space object and its corresponding point in the image, it is necessary to establish a geometric model of camera imaging.The geometric model of the camera can be obtained by shooting the flat plate with fixed spacing pattern and calculating by the calibration algorithm, so as to obtain the high-precision measurement and reconstruction results.A plate with a fixed spacing pattern array is the Calibration Target.

We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed Industry Standard to offering our customers with excellent products, reasonable prices and high level of service.

Welcome to China and visit our factory. Hope that our cooperation ever lasting!

The Company Has Passed ISO9001: 2008 Quality Management System Certification

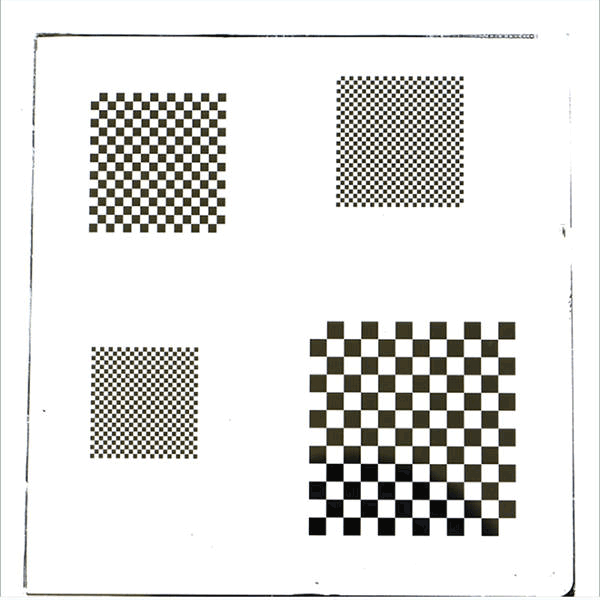

Material: Soda Glass, Ceramic .metal material

External Dimensions: 100mm*100mm*3mm（customization）

Accuracy: 0.001mm

Squares Size: 3mm*3mm （customization）

Application Range :

Professional used to measure the instrument to standardize calibration. Instruments to measure the workpiece before the calibration, this Calibration Targe as a standard sample. According to correspondence obtained from the standard values, Applicable Machine Vision,PCB Board,Metal Plating,Optical Image Coordinate Measuring Apparatus,Optical Image Profile Projector,Microscope,Mounter Etc. Instrument Calibration.
